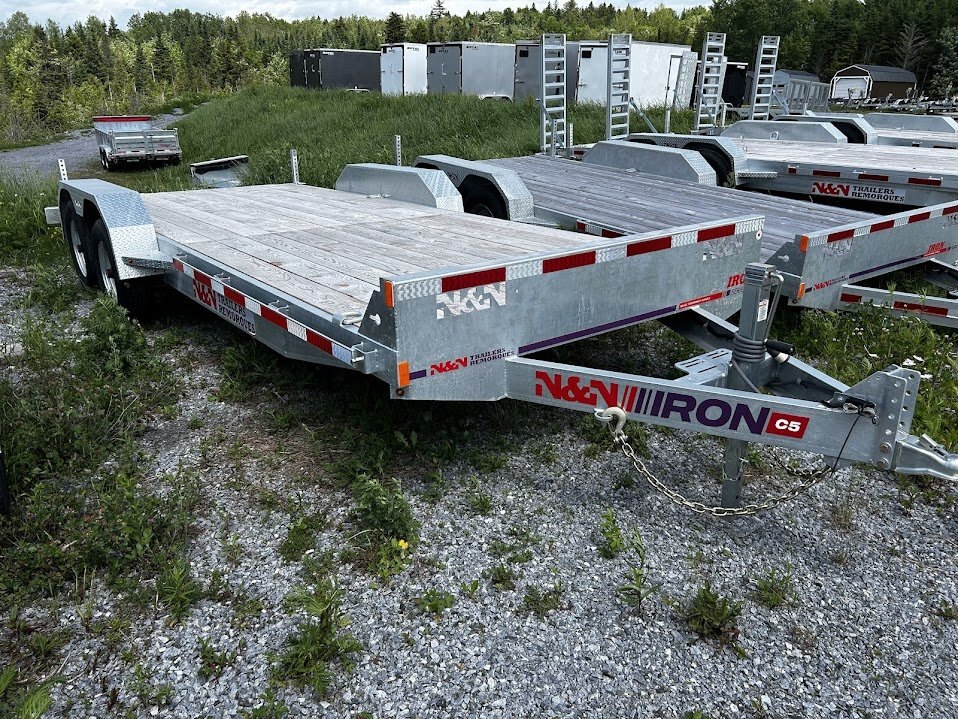

N&N 7x20 Iron C5 Galvanized Equipment Trailer

The N&N 7x20 Iron C5 Galvanized Equipment Trailer is a premium, Canadian-built hauler widely used for transporting small vehicles, tractors, and equipment. It features a heavy-duty 5-inch C-channel frame and a full hot-sipped galvanized finish to withstand harsh Canadian winters and prevent rust.

Specific details and specifications for this trailer configuration are outlined below:

General Specifications

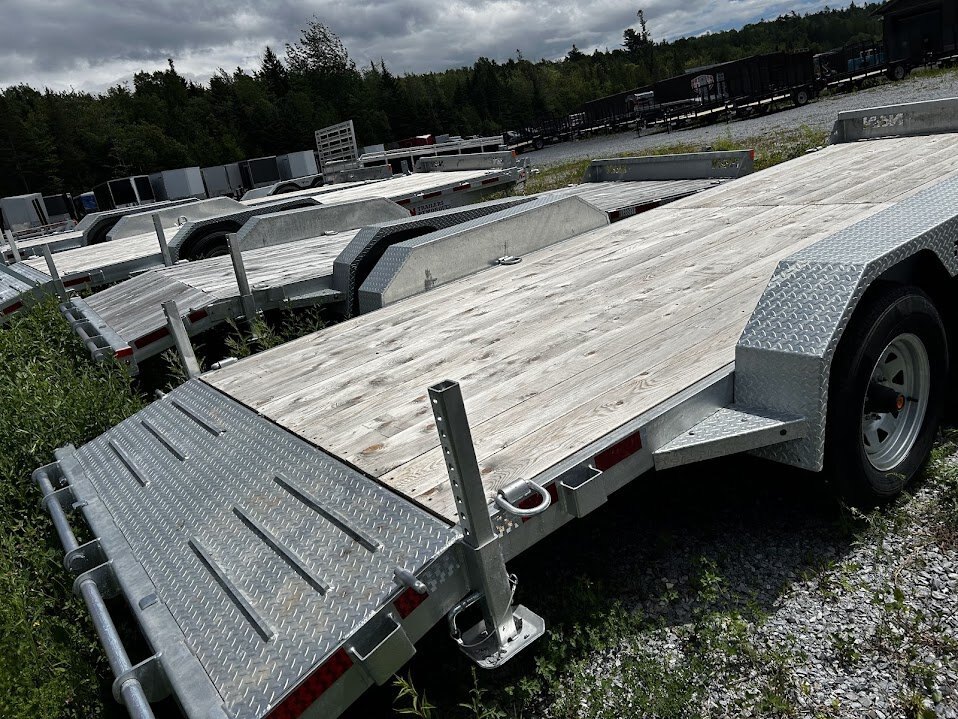

• Overall Dimensions: 7' W × 20' L (usually an 18-foot flat deck + 2-foot beavertail)
• Empty Weight: ~2,396 lbs (varies slightly based on options)
• Payload Capacity: ~7,403 lbs
• Axle Configuration: Tandem 5,200 lb axles (upgradable to 7,000 lb on the C5 series)

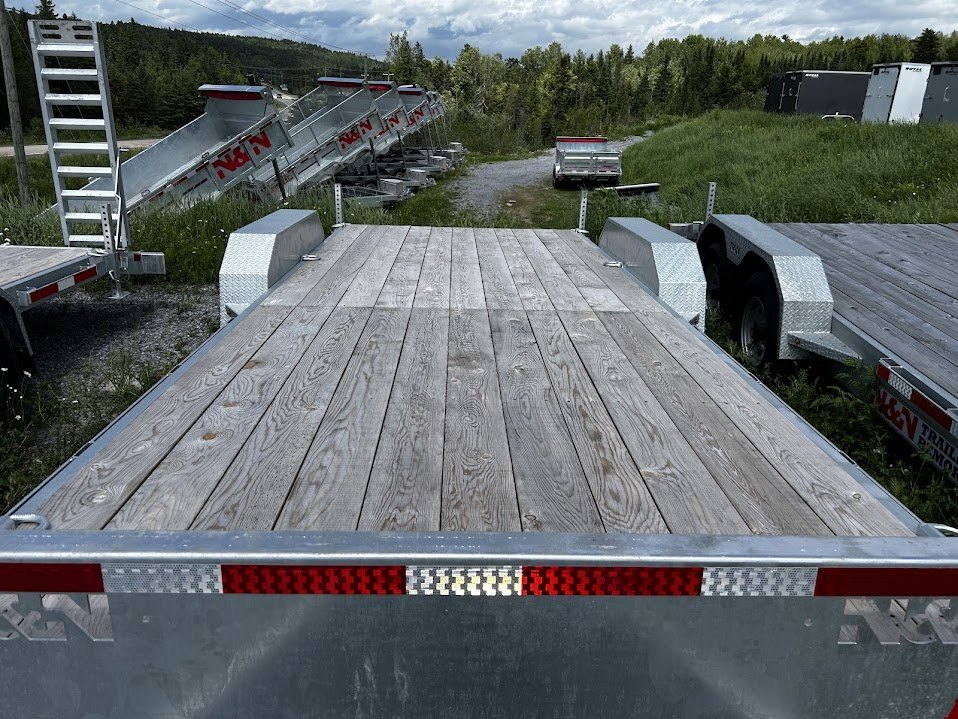

• Decking: Treated wood planks or hemlock
• Finish: Hot-dipped galvanized (steel and axles)

Standard Features & Build Details

• Frame & Crossmembers: 5" C-channel frame with crossmembers spaced 16" on center
• Coupler: Adjustable 2 5/16" coupler (5 positions)
• Jack: 7,000 lb top-wind jack (zinc coated)

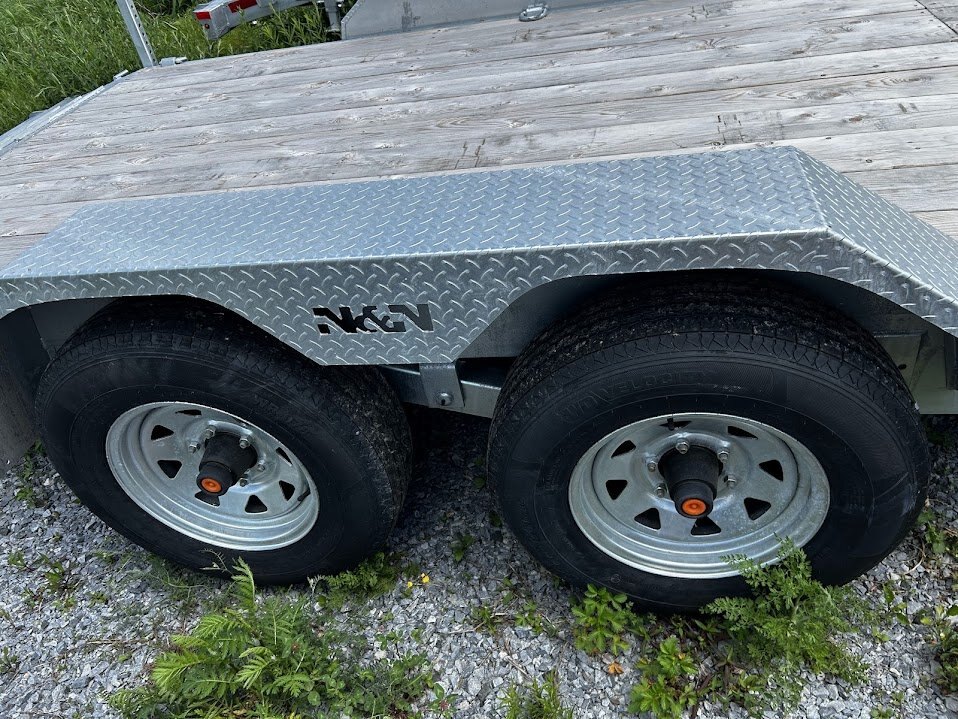

• Brakes & Tires: Electric brakes on both axles; radial tires mounted on galvanized rims
• Wiring: Voltflex cold-weather, low-temperature wiring harness (Arctic Flex)
• Tie-Downs: Welded D-rings and side pocket rails with heavy-duty rub rails
• Lighting: All-around LED lighting

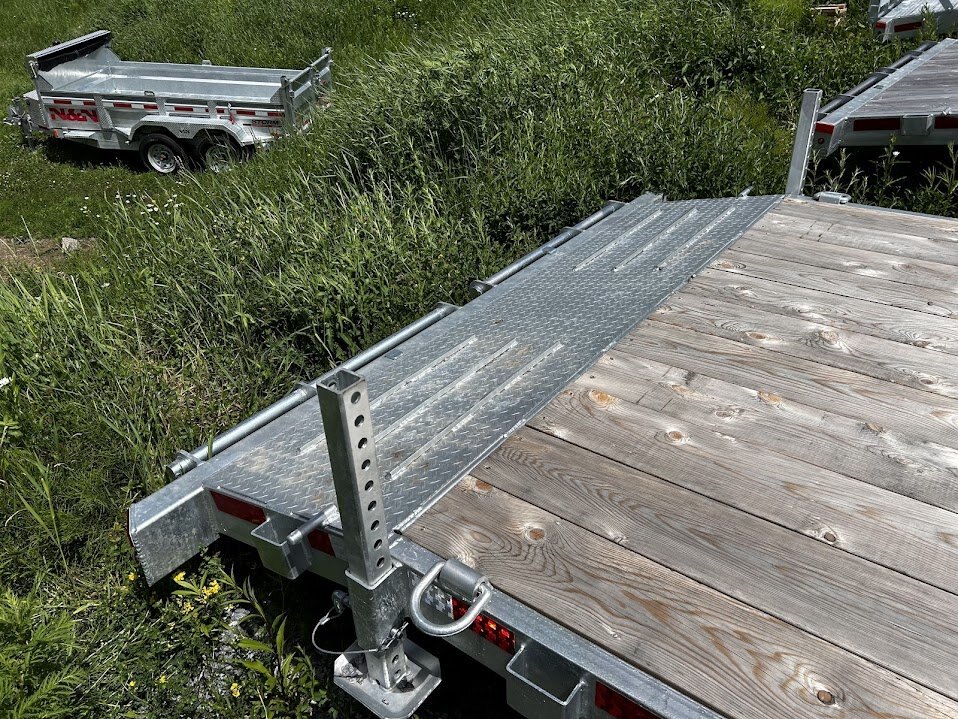

• Ramps: 14" × 60" galvanized slide-in or stand-up ramps (up to 10,000 lb capacity)

Plus mvi, tax and licensing.
