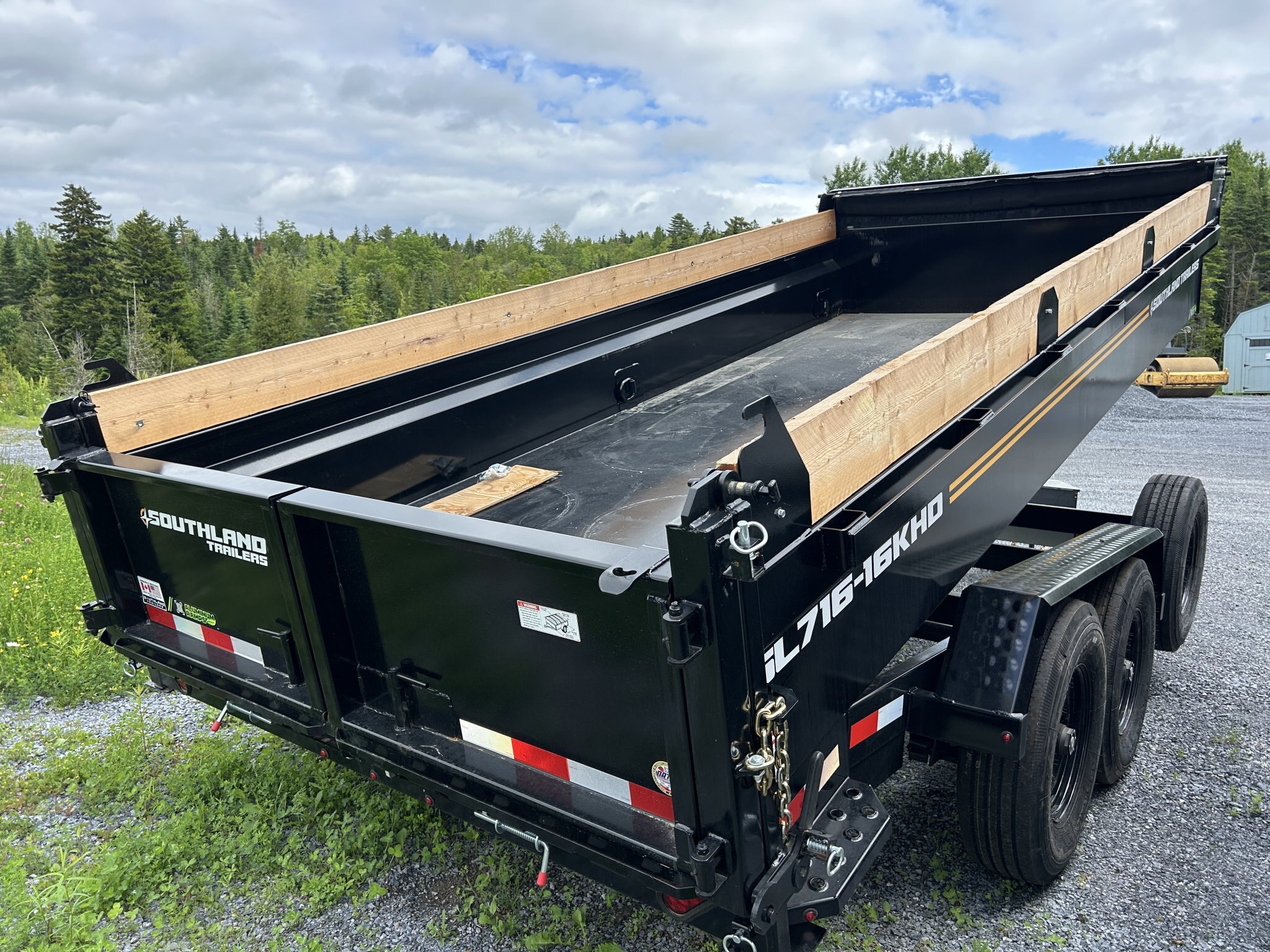

2026 Southland SL716-16KHD HEAVY DUTY DUMP TRAILER

WE FINANCE.

The 2026 Southland SL716-16KHD is a HEAVY DUTY, 7 X 16' TANDEAM-AXLE DUMP TRAILER. Engineered for professional contractors and demanding job sites, it features a robust structural design, an upgraded 9-ton scissor hoist, and a high payload capacity.

Key Dimensions & Capacities

• Box Dimensions: 16' (L) × 82" (W) × 26" to 28" (H)
• Overall Dimensions: ~253" (L) × 8.5' (W) × 25" (Deck Height)
• GVWR (Gross Vehicle Weight Rating): 17,421 lbs
• Net Weight: ~4,300 to 4,500 lbs
• Payload Capacity: ~13,000 lbs

Structural Specifications

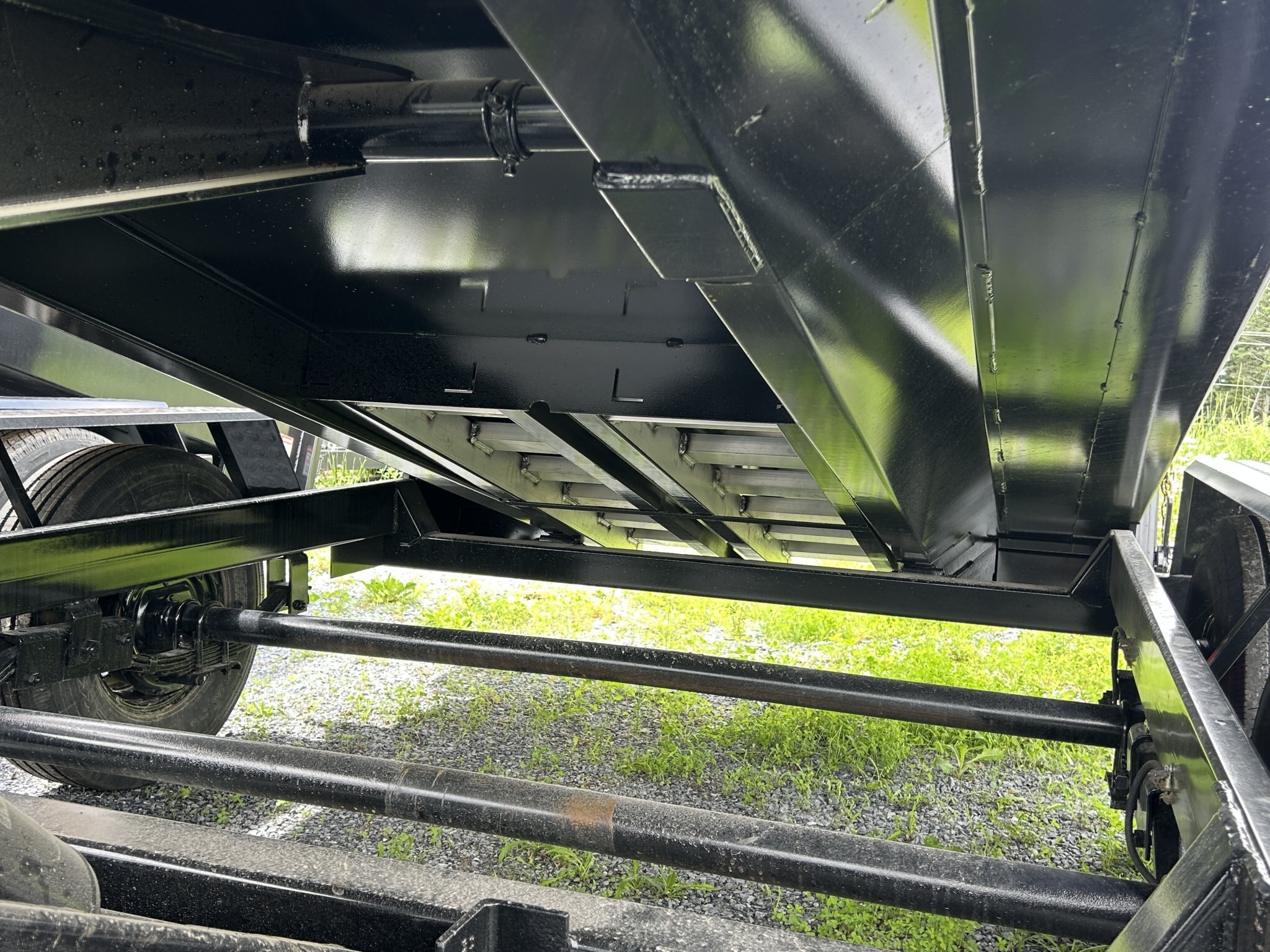

• Frame & Tongue: 6" x 2" HSS structural tubing
• Floor & Walls: 10-gauge (GA) formed steel floor and 10 to 12-GA steel walls
• Axles: (2) 8,000 lb Lippert Spring or Slipper Spring axles
• Suspension: Multi-Leaf Spring or Equi-Flex system
• Tires: ST235/80R16 or ST235/85R16 F/G (14-Ply) steel-belted radials on 16" black rims
• Paint: PPG DTM 2-Part Epoxy

Hydraulic System

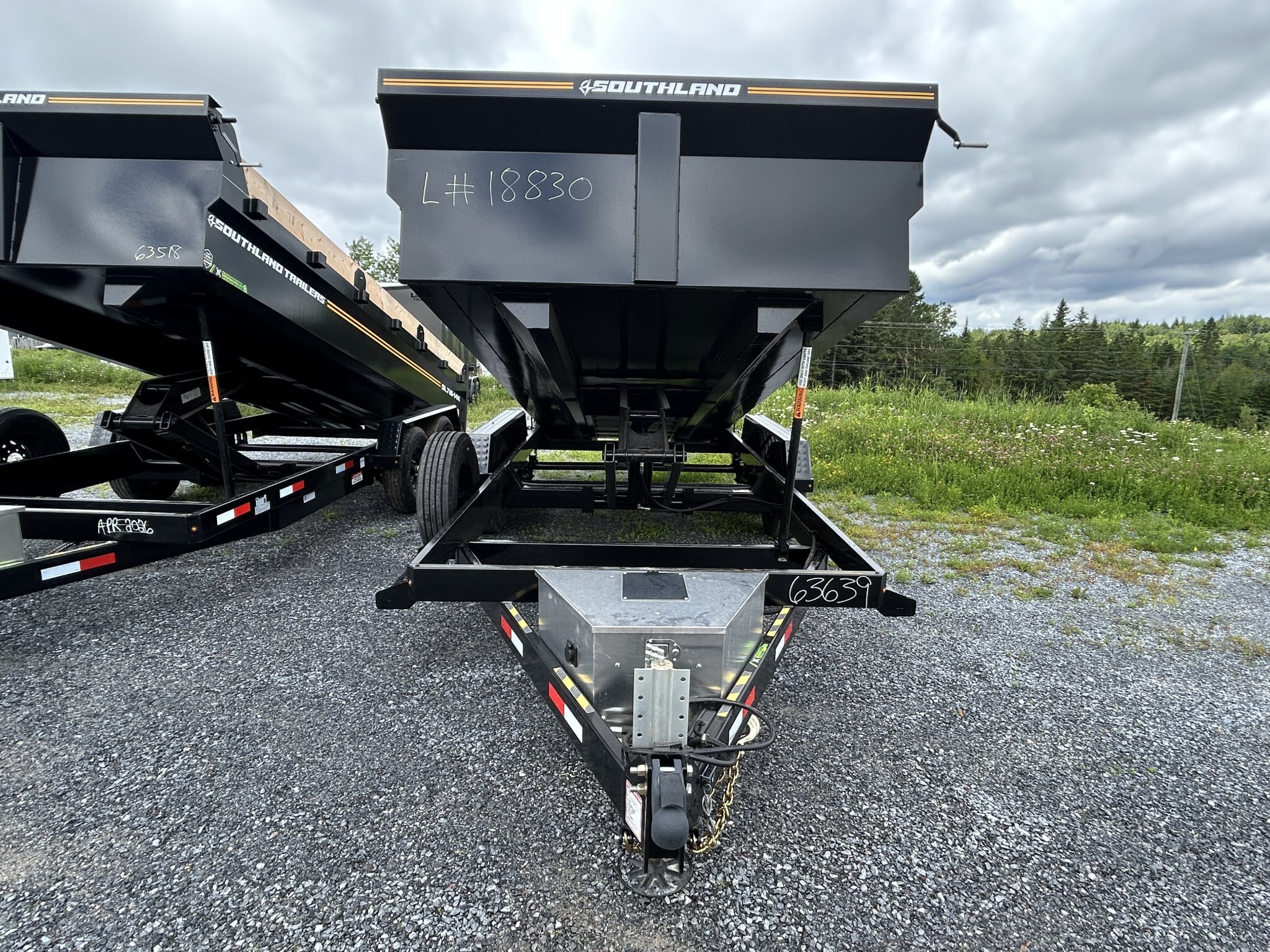

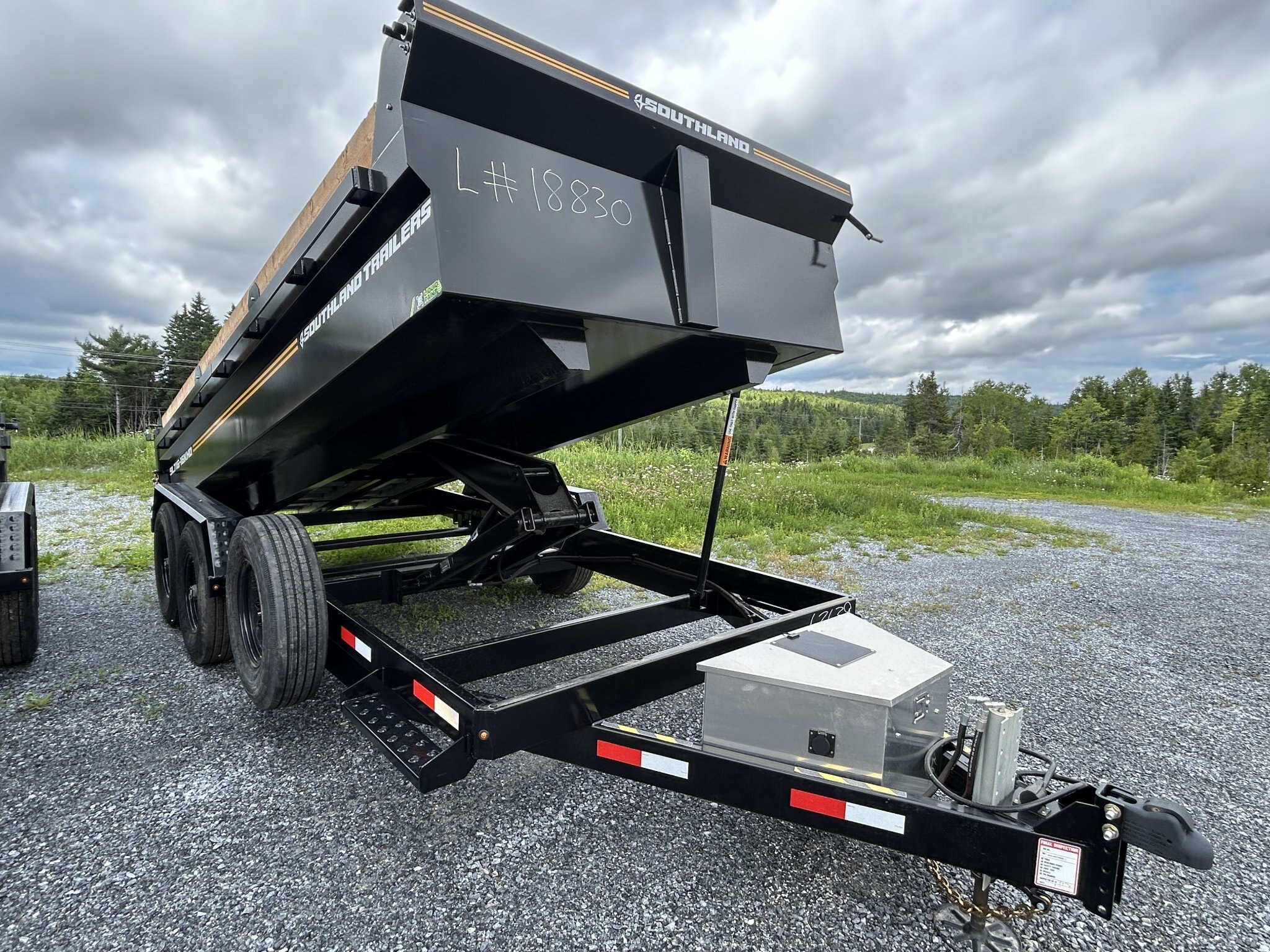

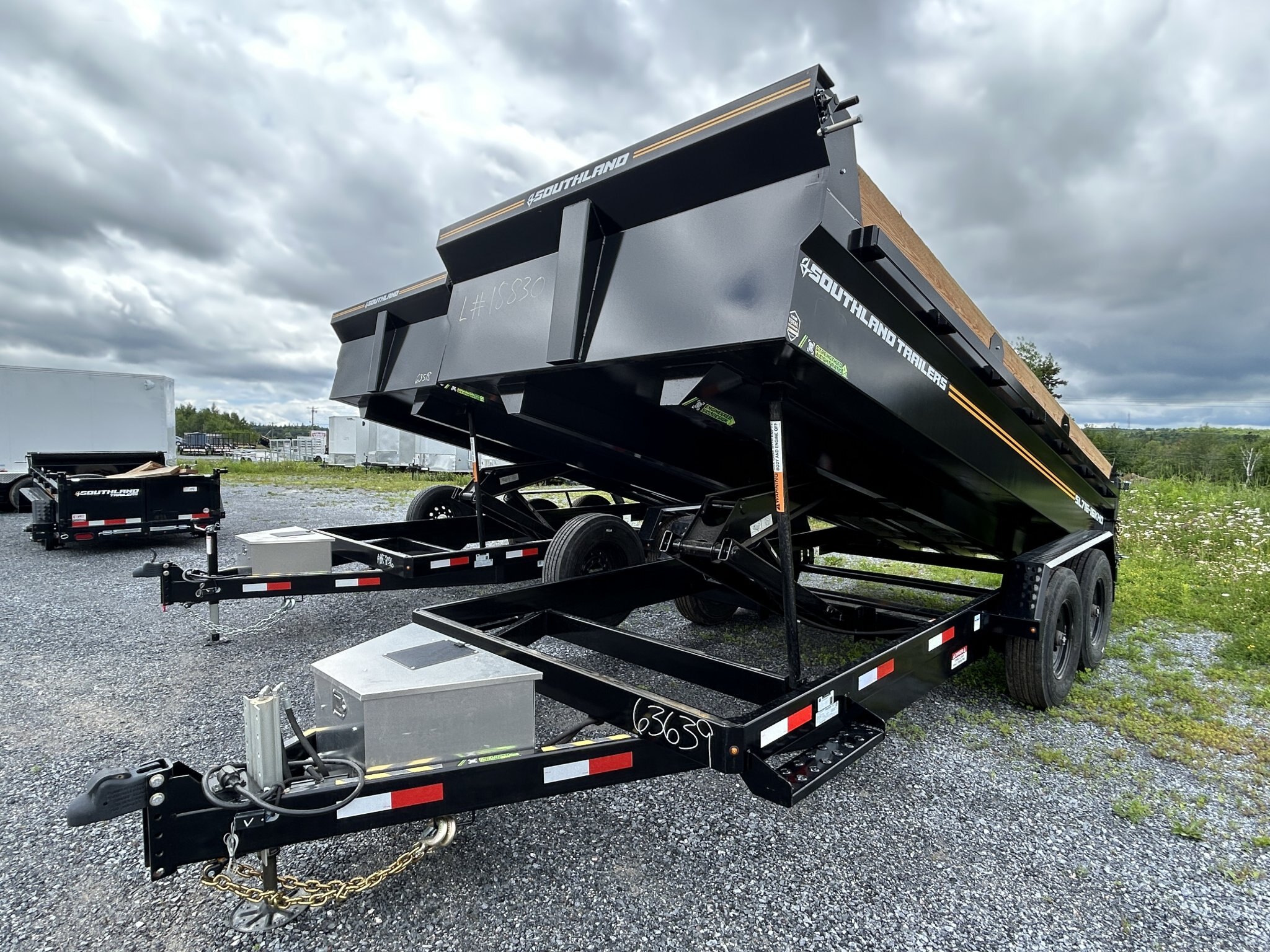

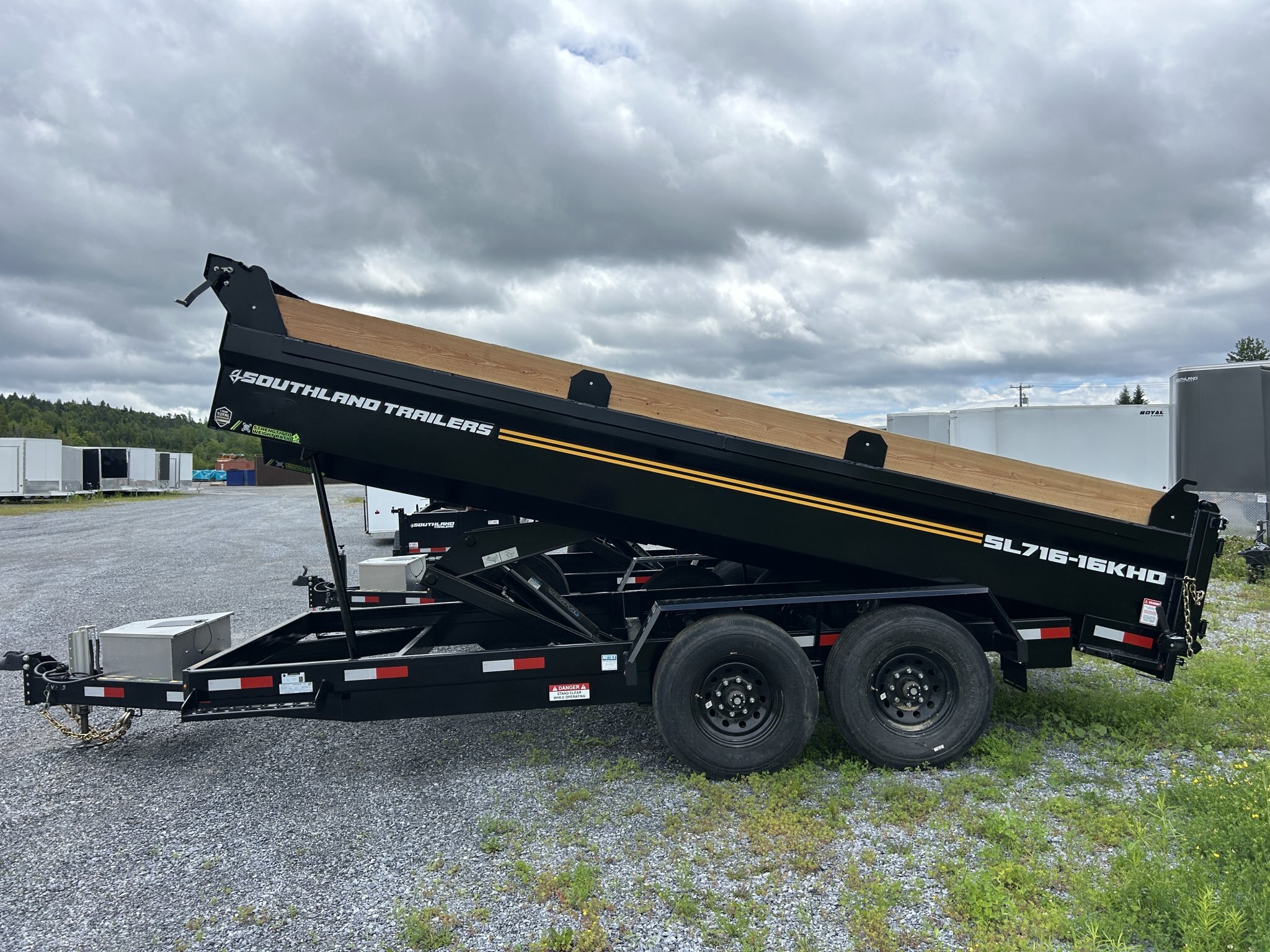

• Hoist: Champion CS615T 9-Ton underbody scissor hoist (Power up / Power down)

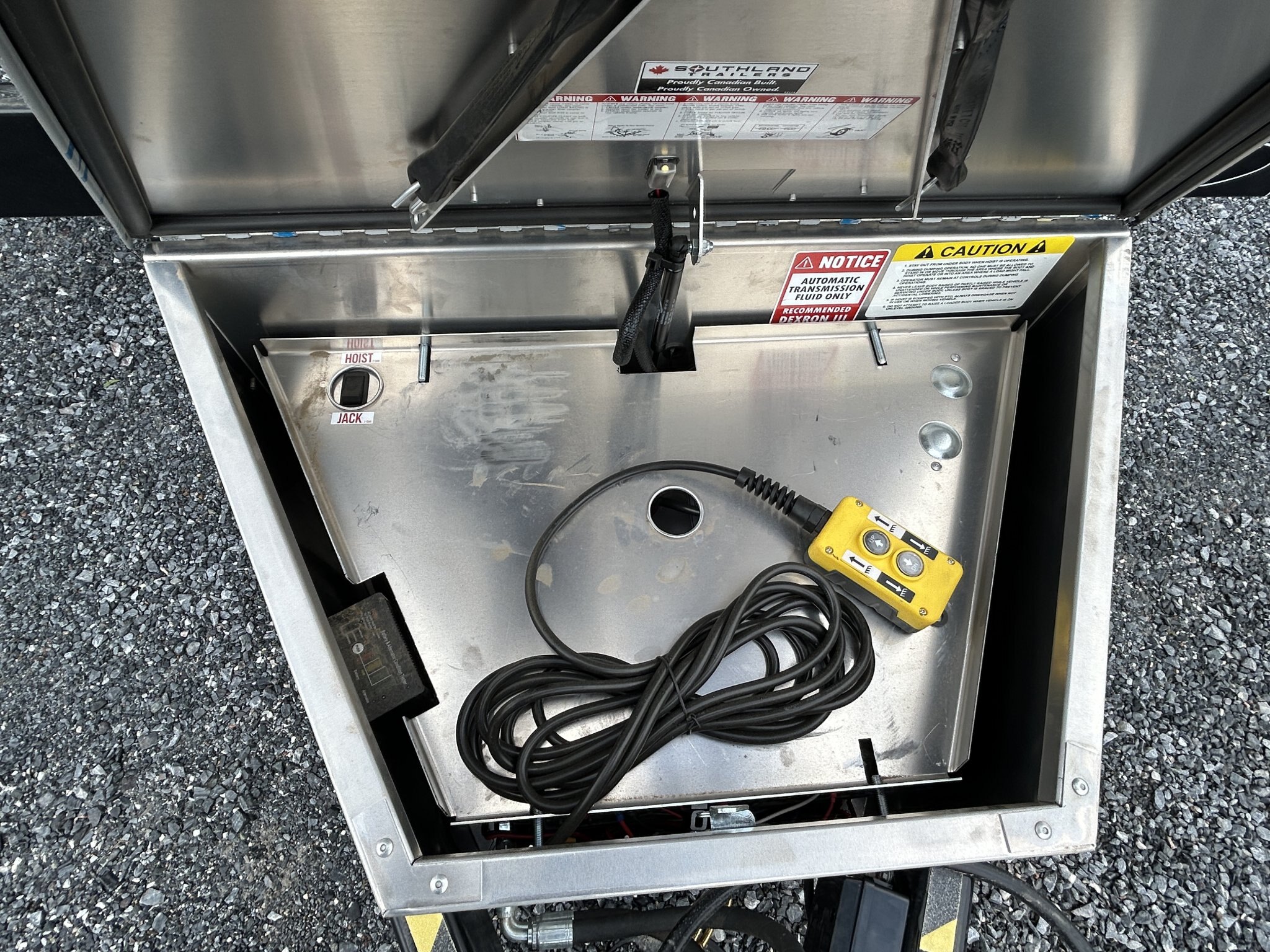

• Pump Box: Aluminum pump box with 110V battery charger and 10W solar panel

Hardware & Standard Features

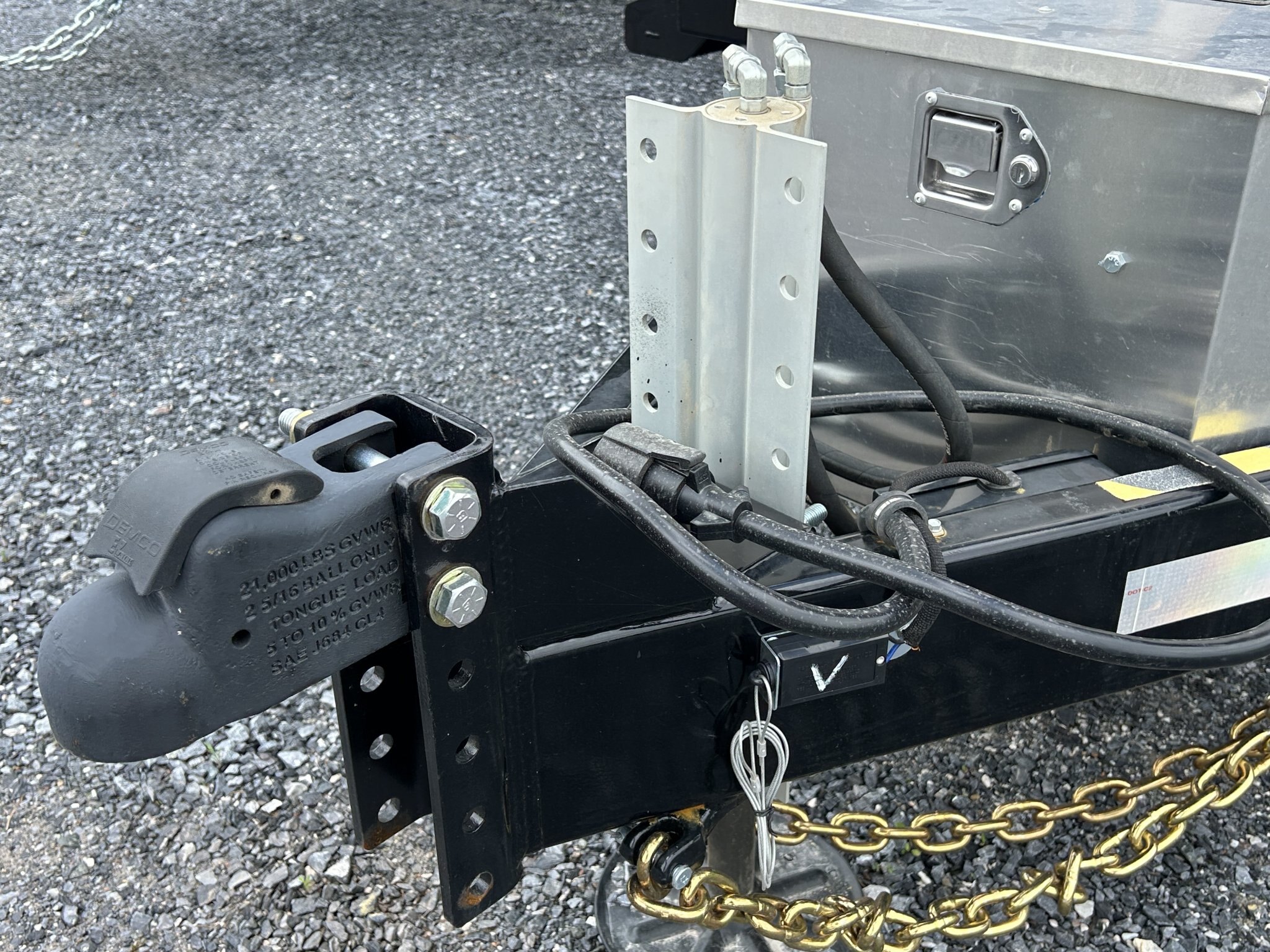

• Coupler: 21,000 lb Demco adjustable (2-5/16" ball)
• Jack:  8,000 lb hydraulic bolted

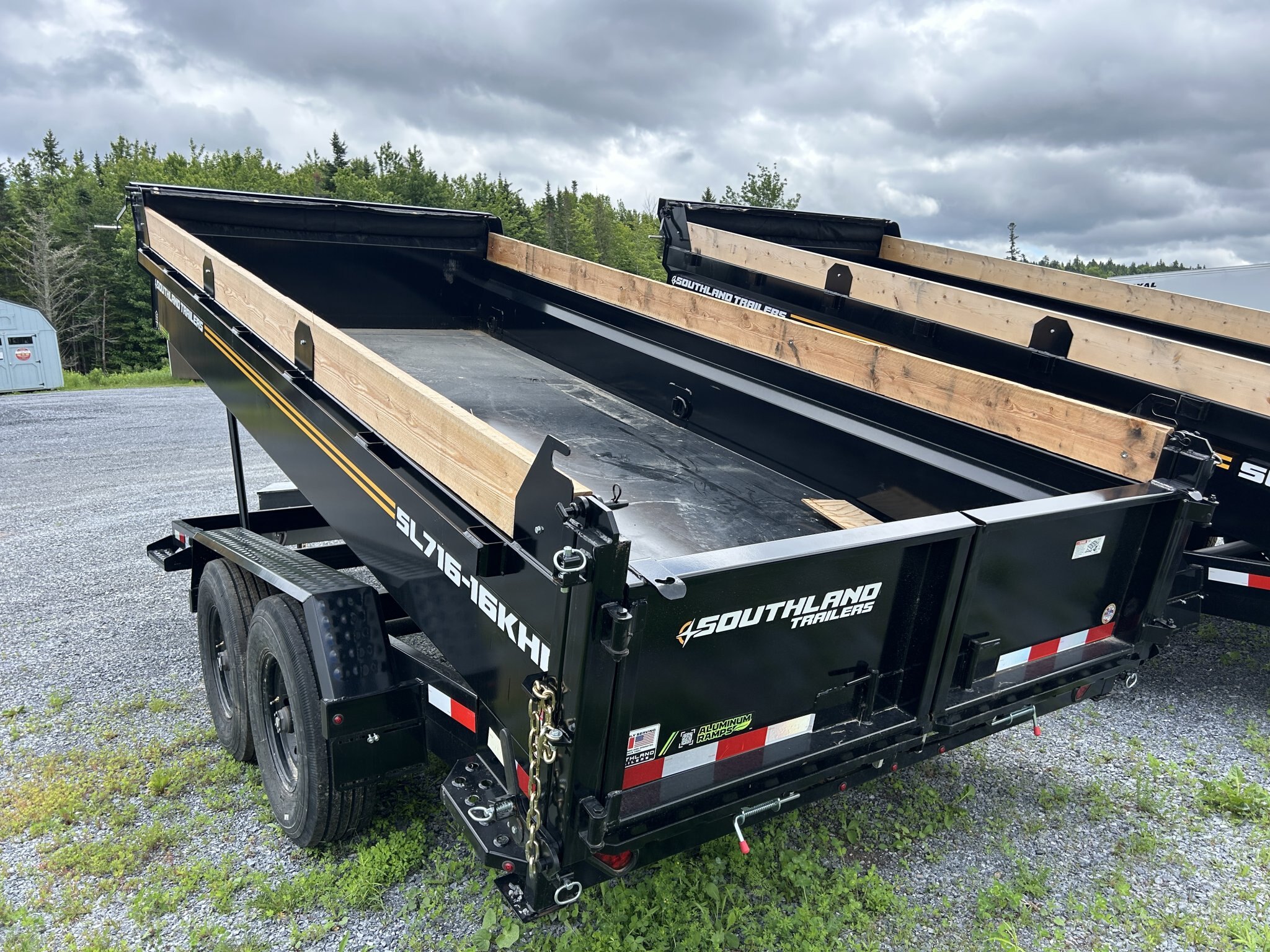

• Tailgate: Steel 3-way Barn Door and Spreader gate
• Gate Holdbacks: HSS spring-enclosed holdbacks with galvanized strike plates
• Ramps: ~4,500 lb capacity aluminum slide-in ramps
• Extras: Roll-up tarp, stake pockets, rub rails, rear drop-down stabilizer jacks, and LED DOT lighting
